Lo Pro or Funny frame ?

Rossin fork crown for a LoPro

Rossin fork crown for a LoPro

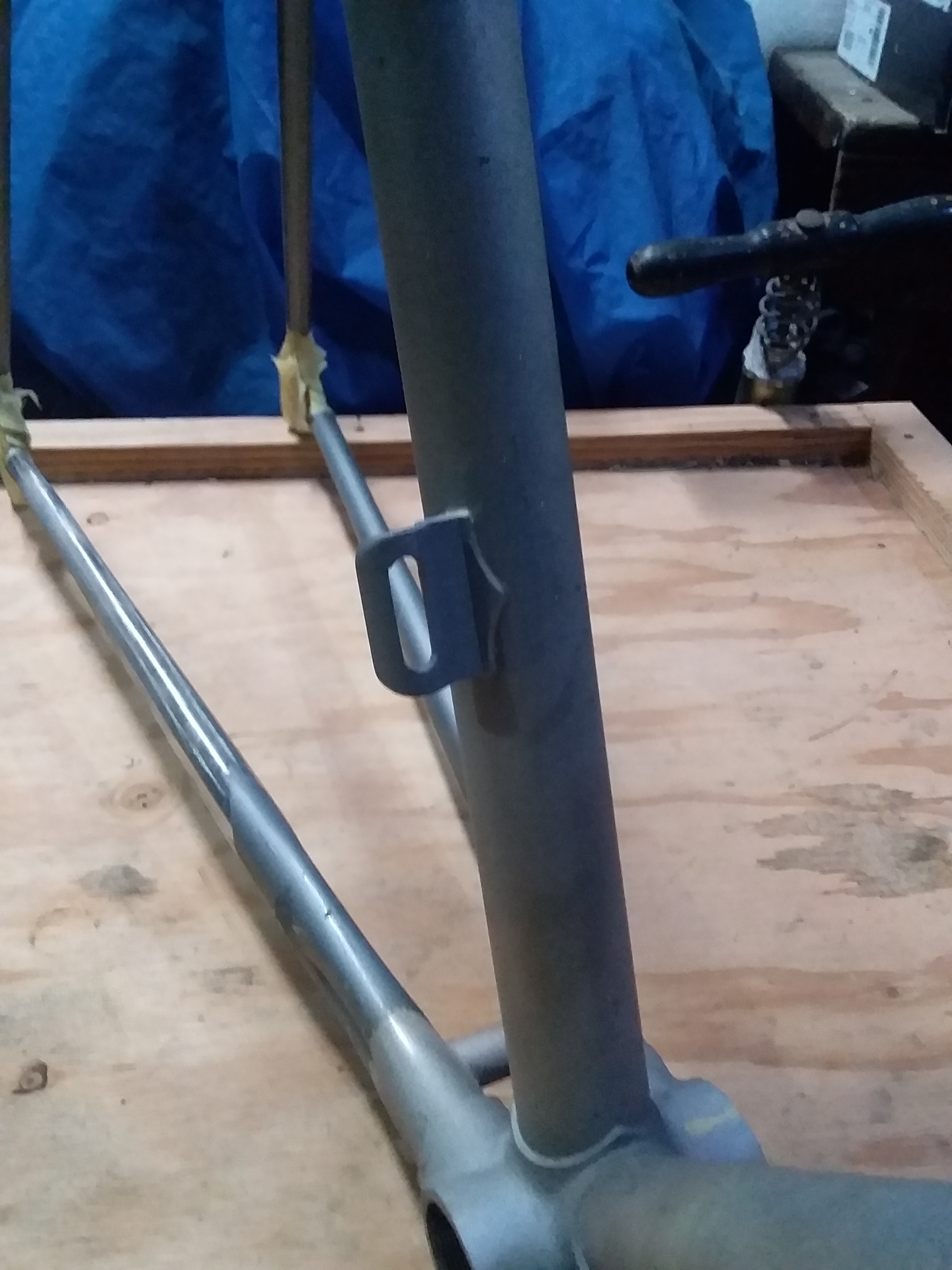

Rossin BB shell

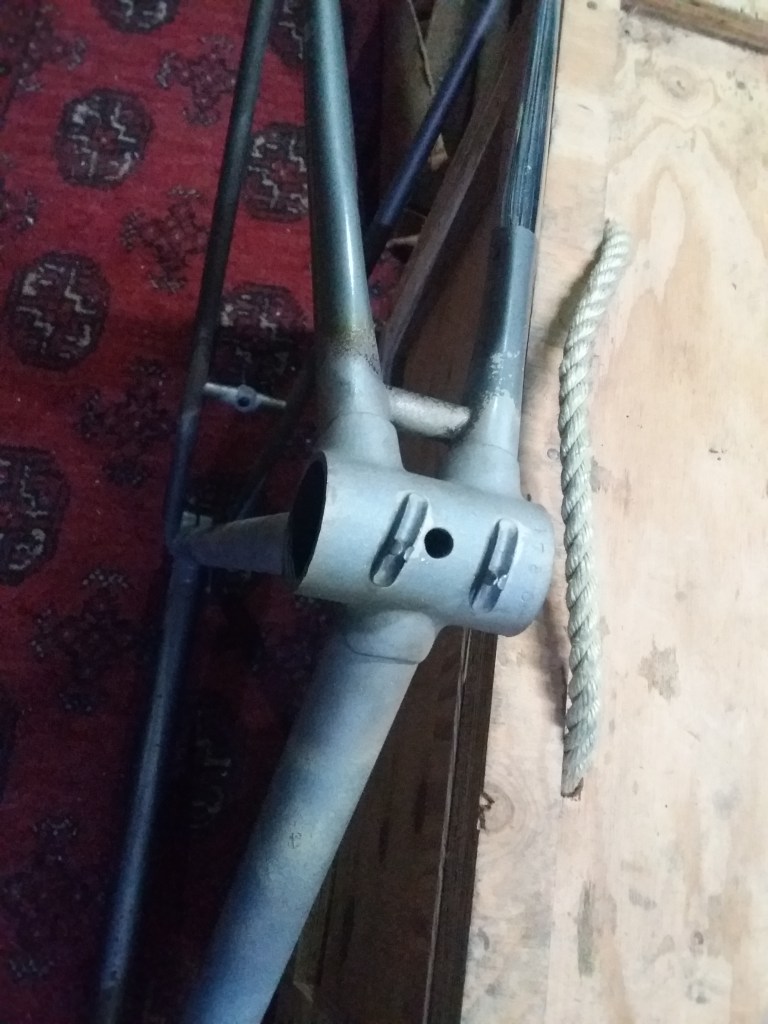

Rossin BB shell

Rossin BB shell with filing

Rossin BB shell with filing

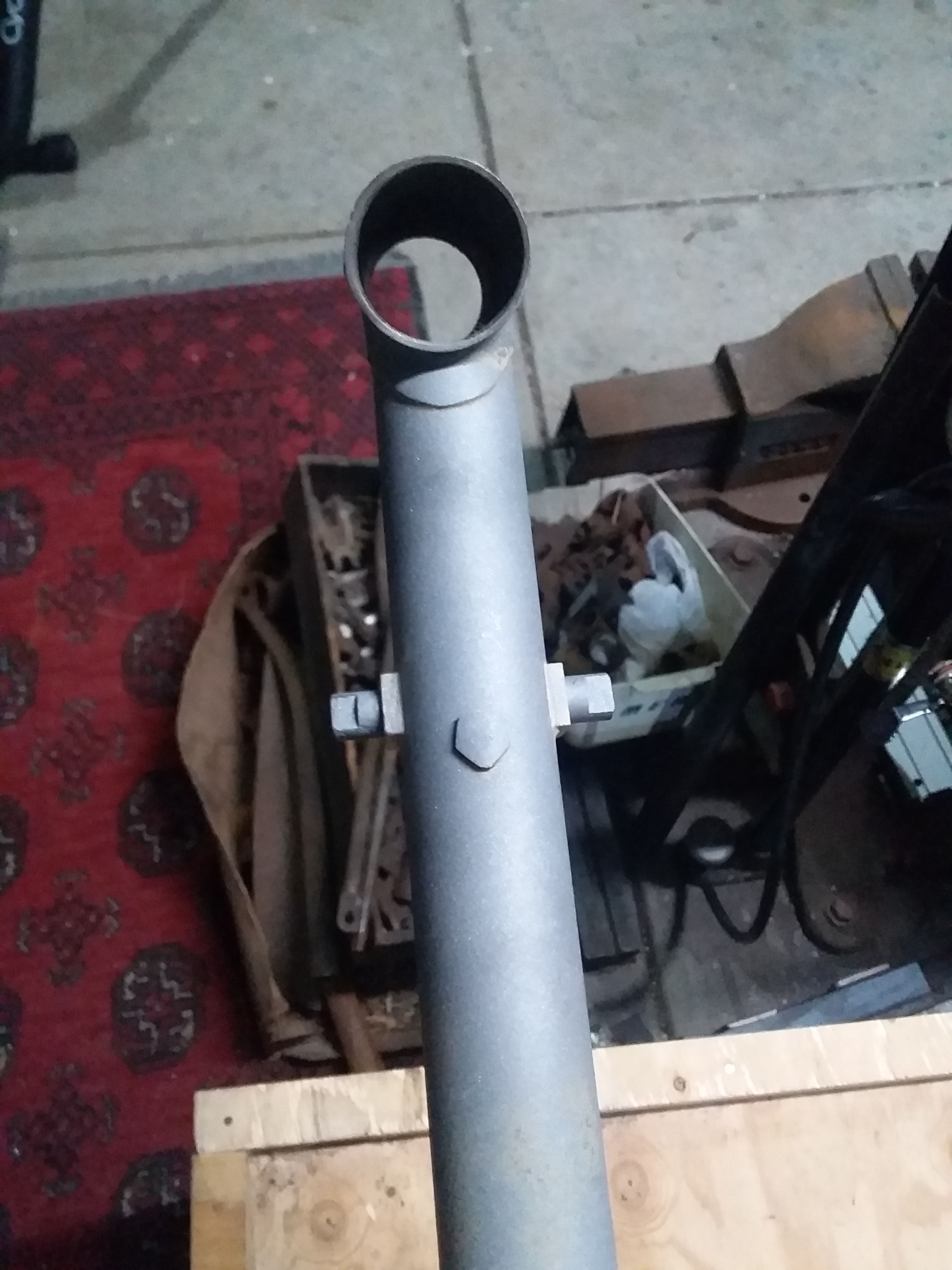

After much too-ing and fro-ing over a number of years my regular customer and visual artist Bundit has finally decided he wants me to build him a Lo Pro frame in the style of a Rossin.

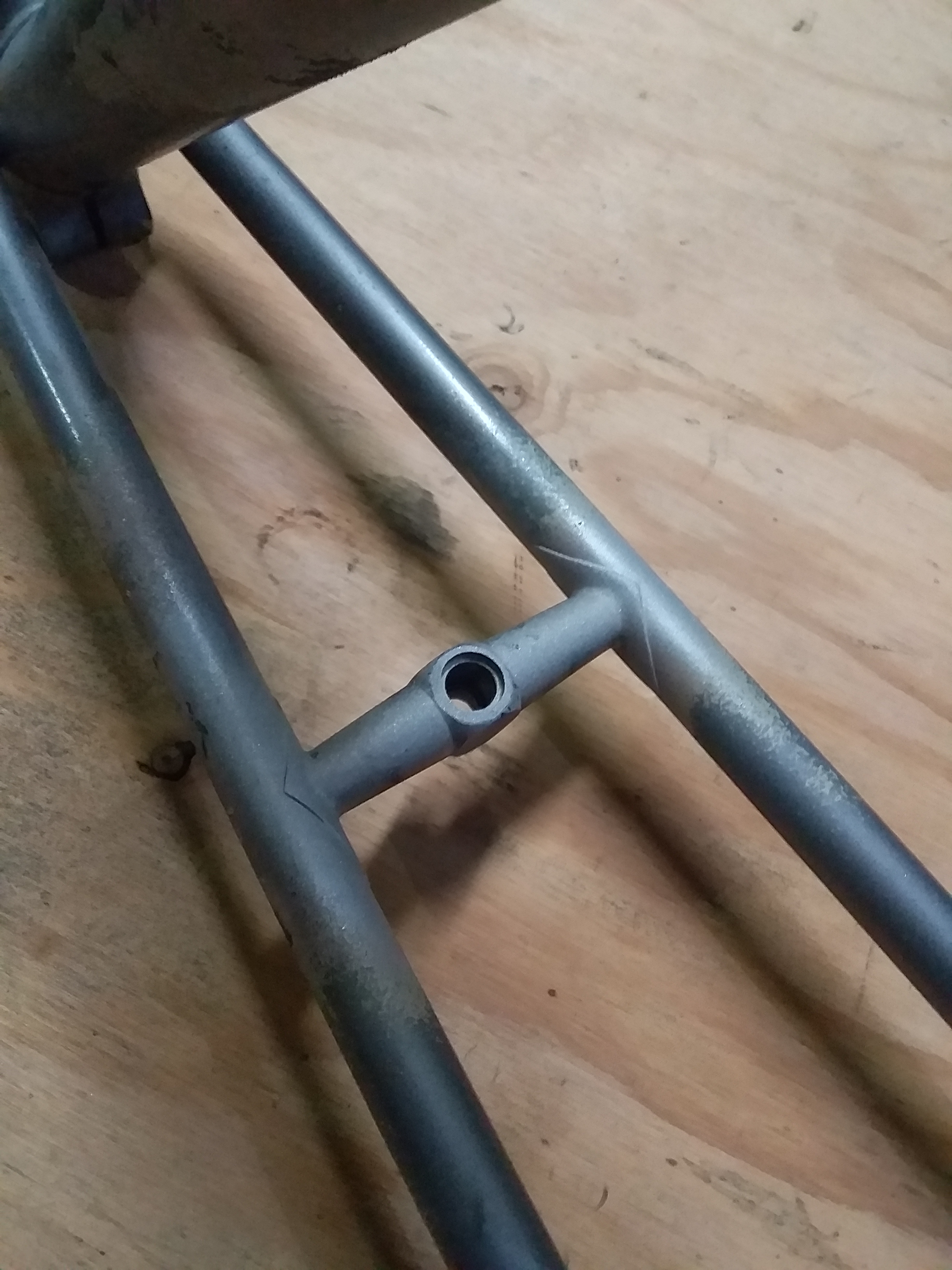

He is so enamored with the brand that he has sourced original pantographed frame fittings. We have a fork crown, a Bottom Bracket shell and a set of rear chainstays with caps already joined. These haven’t been rescued from a crashed frame but from far flung Romania. They need a fair bit of work to get to a usable state but I am getting there. Based on sizing and preferences arrived at through other modifications I have done for Bundit in the past this will be a single speed frame for the road. It will run a 650 front wheel and a front brake. Given the BB shell had guide slots cast into it for the cables, and we werent going to need them I decided to fill these with brass before commencing work. Well, not quite. There is a lot of work involved in building a frame before I do any joining of tubes. I also had to do some serious work on the crown to make it fit. Rough wouldn’t be the word I would use here and I have come to the conclusion that these aren’t actually pantographed using the said machine as we might have always assumed but that the lettering is cast into them from the start. Anyway I will leave you with some pictures and get back to it. This has been a long time coming and the worst thing about it might be that it could be the last job I do for Bundit when it is finished. We shall see
